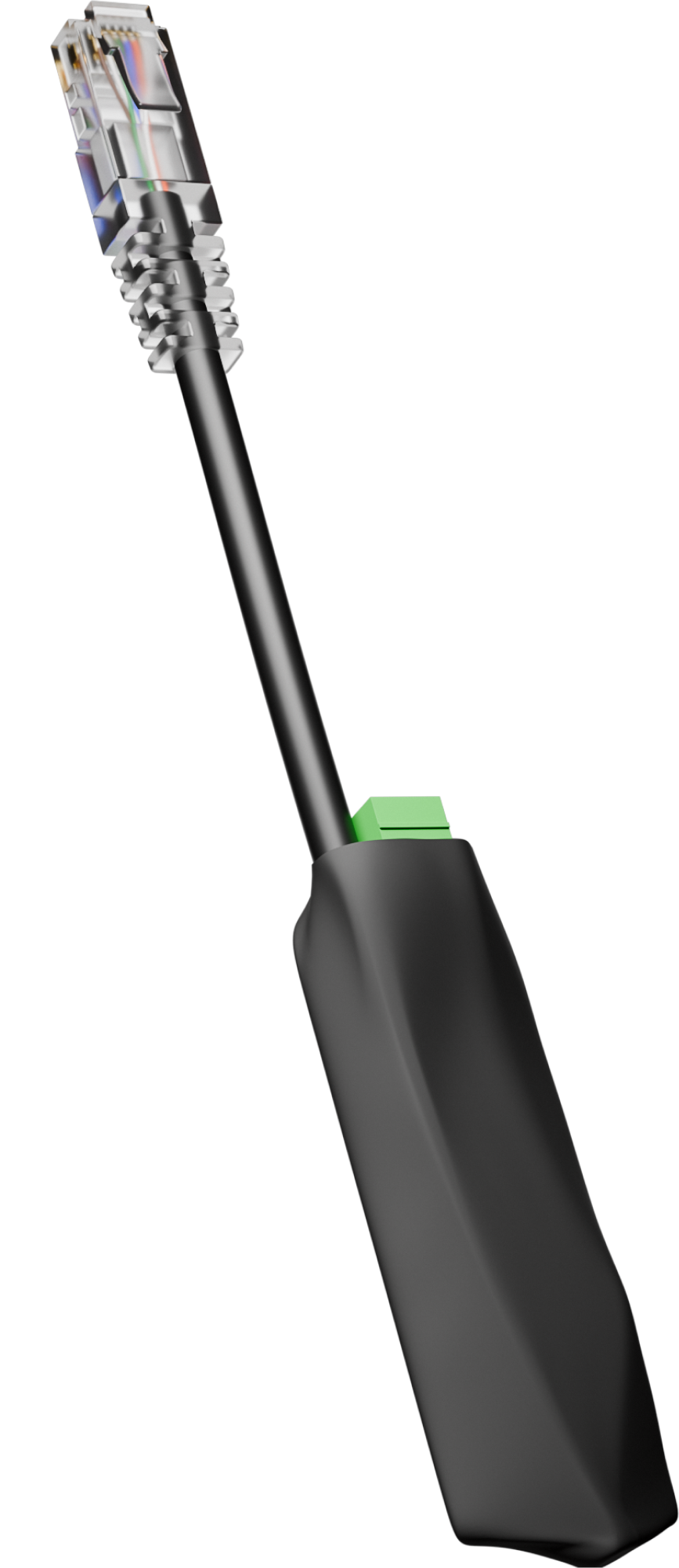

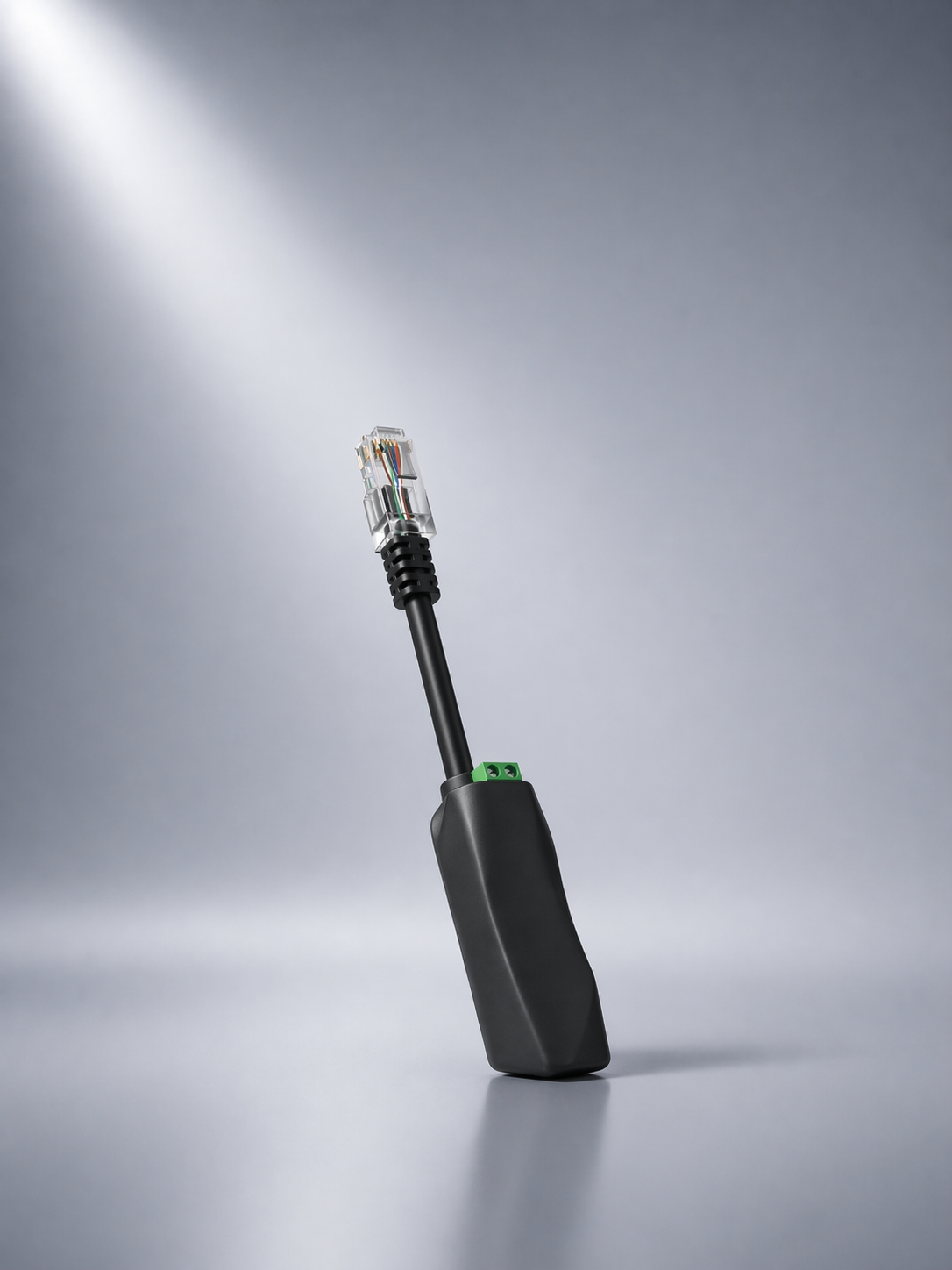

Kisi Two-Wire Adapter (Powered Device / PD)

Modern Access Control. Legacy Wiring. Zero Compromise.

The Kisi Two-Wire Adapter is a compact, efficient solution that enables you to bring Kisi’s modern access control to your existing infrastructure. Acting as the Powered Device (PD) in the two-wire system, this adapter receives both power and data from the Kisi Two-Wire Switch (PSE) and uses it to drive the Kisi Reader — all over a standard two-wire connection.

Ideal for retrofit scenarios, the adapter eliminates the need for complex rewiring, making upgrades fast, cost-effective, and minimally disruptive. Its low-profile, heatshrink-tubing design fits neatly in tight spaces, making installation quick and discreet.

Key Features:

• Plug-and-play retrofitting using existing 2-wire, CAT 5e, CAT 6, or similar cabling


• Power-efficient design receives energy from the Two-Wire Switch (PSE)


• Compact and durable build with polyolefin heat-shrink tubing


• Seamless integration with Kisi Readers


Technical Specifications:

• Dimensions: 2.95 x 0.98 x 0.39 in (7.5 x 2.5 x 1 cm)


• Weight: 0.88 oz (25 g)


• Material: Polyolefin heatshrink tubing


• Connector Type: RJ45 (male) to 2-wire terminal block


• Cable Compatibility: 2-wire, CAT 5e, CAT 6 or similar


• Max Transfer Distance: 300 m with unshielded/unwrapped Wiegand cables


• Power Source: Supplied by Two-Wire Switch (PSE)

• Operating Temperature: 32 to 122°F (0 to 50°C)
